AudioCast: Enabling Ubiquitous Connectivity for Embedded Systems through Audio-Broadcasting Low-power Tags

Authors: Rajashekar Reddy Chinthalapani, Dhairya Jigar Shah, Nobel Ang, and Ambuj Varshney
In the Proceedings of ACM Interact. Mob. Wearable Ubiquitous Technol. (IMWUT) 9, 2, Article 27 (June 2025), 2025
[Paper pdf] [Demo pdf] [Github]

Abstract: Wireless connectivity challenges hinder the deployment of embedded systems. We introduce AudioCast to address two critical issues: spectrum scarcity-induced contention and high power consumption in transmitters. The widespread availability of broadcast radio receivers (for example, FM radios using the 88–108 MHz spectrum) and access to underutilized lower- frequency spectrum motivate the design of AudioCast. The lower-frequency spectrum offers superior radio-wave propagation characteristics, exhibiting at least 10 ×lower path loss than the 2.4 GHz and 5 GHz Industrial, Scientific, and Medical (ISM) bands while avoiding congestion and interference. These properties enable reliable and long-distance communication, even for weakly radiated signals. AudioCast builds on these properties and the unique negative resistance of a tunnel diode.

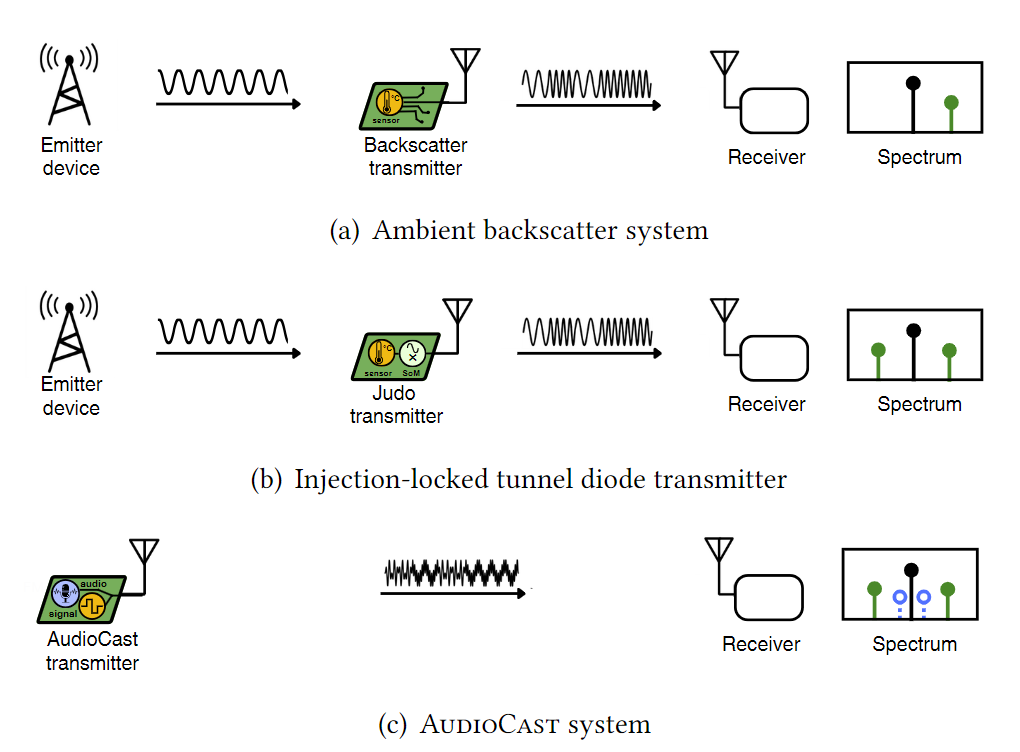

AudioCast rethinks the architecture of radio transmitters using a tunnel diode oscillator to generate carrier signals and self-modulate them with baseband signals. This results in frequency-modulated transmissions at an overall power consumption below 200 μW. Unlike related systems based on the backscatter mechanism, AudioCast does not require an externally generated carrier or rely on ambient signals. We argue that AudioCast represents an example of a new class of transmitters which we conceptualize as Beyond-Backscatter transmitters. Through experiments, we demonstrate that AudioCast achieves a transmission range of up to 130 m in line-of-sight and tens of meters in non-line-of-sight conditions respectively. These transmissions are decodable by ubiquitous commodity FM receivers in cars, homes, and phones. We evaluate AudioCast through theoretical analysis, benchtop experiments, and urban/indoor field deployments. Additionally, we prototype and demonstrate novel applications, including low-power voice transmissions and hand gesture communication, enabled by AudioCast’s range and power efficiency.

ACM Reference Format

C. Rajashekar Reddy, Dhairya Shah, Nobel Ang, and Ambuj Varshney. 2025. AudioCast: Enabling Ubiquitous Connectivity for Embedded Systems through Audio-Broadcasting Low-power Tags. Proc. ACM Interact. Mob. Wearable Ubiquitous Technol. 9, 2, Article 27 (June 2025), 32 pages. https://doi.org/10.1145/3729471

BibTeX

@article{reddy2025audiocast,
  author    = {C. Rajashekar Reddy and Dhairya Shah and Nobel Ang and Ambuj Varshney},
  title     = {AudioCast: Enabling Ubiquitous Connectivity for Embedded Systems through Audio-Broadcasting Low-power Tags},
  journal   = {Proceedings of the ACM on Interactive, Mobile, Wearable and Ubiquitous Technologies (IMWUT)},
  volume    = {9},
  number    = {2},
  article   = {27},
  year      = {2025},
  month     = jun,
  pages     = {1--32},
  doi       = {10.1145/3729471}
}
